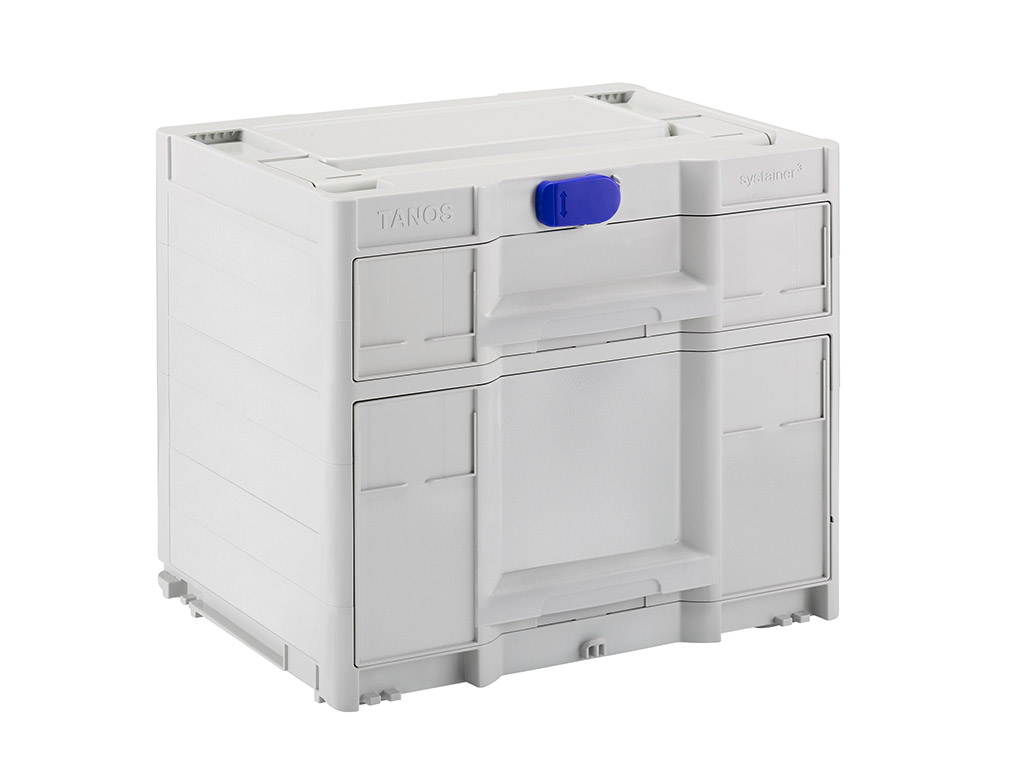

Systainer3 Sortainer

Well sorted is half the battle. The Systainer³ Sortainer in two versions not only offers space for countless small parts up to large packaging and loading devices, but also ensures optimum organisation and flexibility in use with its clear structure and variable partitioning.
Systainer³ sortainer Systainer³ sortainer Systainer³ sortainer


Systainer³ Sortainer Produkthighlights

  • SYS-CART catch for simple connecting and linking with just a flick of the wrist.

    Linkable

    SYS-CART catch for simple connecting and linking with just a flick of the wrist.
  • Van Racking equipment allows for direct integration into bott vario3 van racking thanks to side rails and foldable handle. Pull-out aid supports easy removal.

    Mobile

    Van Racking equipment allows for direct integration into bott vario3 van racking thanks to side rails and foldable handle. Pull-out aid supports easy removal.
  • Systainer³ Sortainer can be combined with Systainer³, systainer® T-Loc and systainer® Classic-Line.

    Compatible

    Systainer³ Sortainer can be combined with Systainer³, systainer® T-Loc and systainer® Classic-Line.

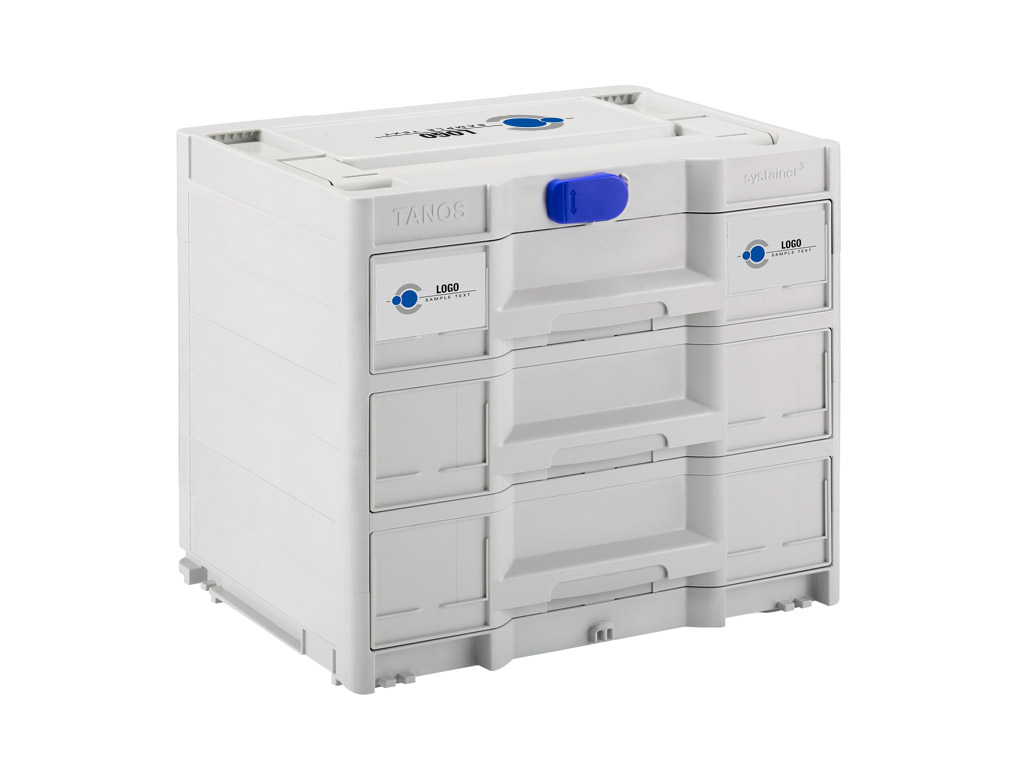

  • Two labelling slots on each drawer allow individual labelling.

    Customizable

    Two labelling slots on each drawer allow individual labelling.

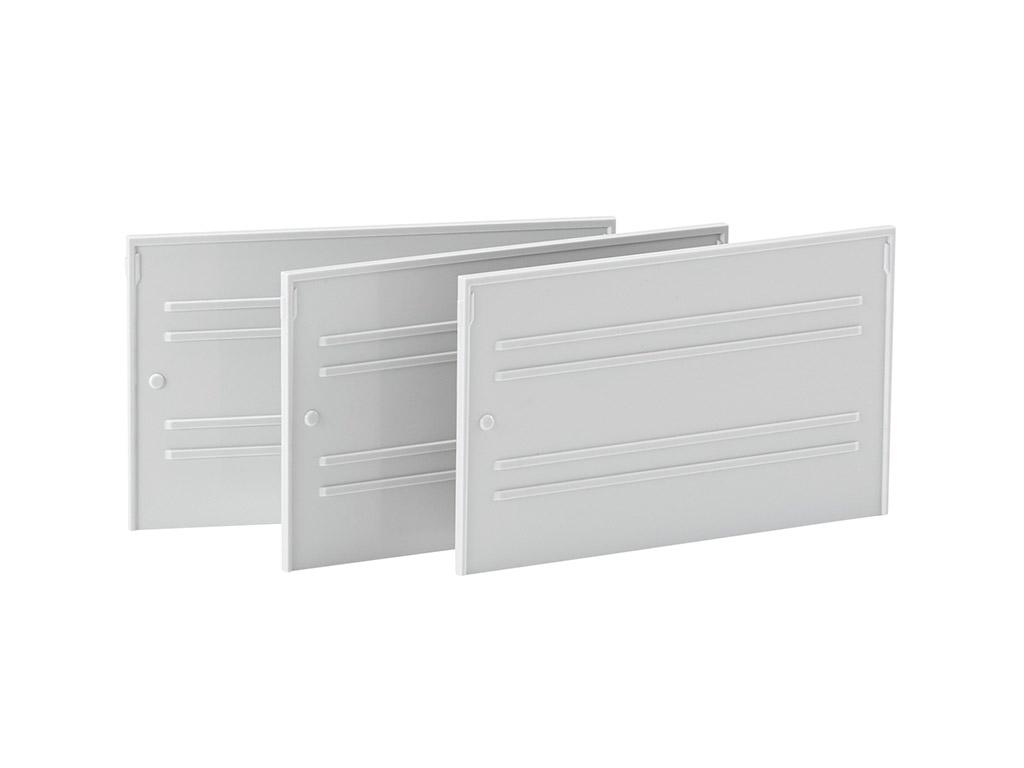

  • Dividers in the drawer can be supplemented with compartment dividers and, together with fixable insert boxes, ensure parts sorting that can be adapted down to the smallest detail.

    Adaptable

    Dividers in the drawer can be supplemented with compartment dividers and, together with fixable insert boxes, ensure parts sorting that can be adapted down to the smallest detail.

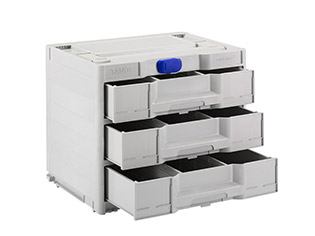

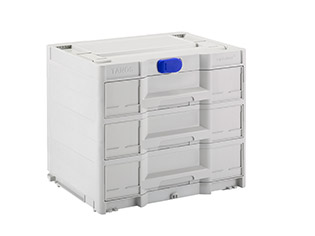

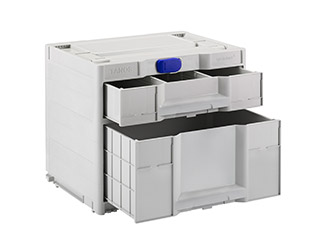

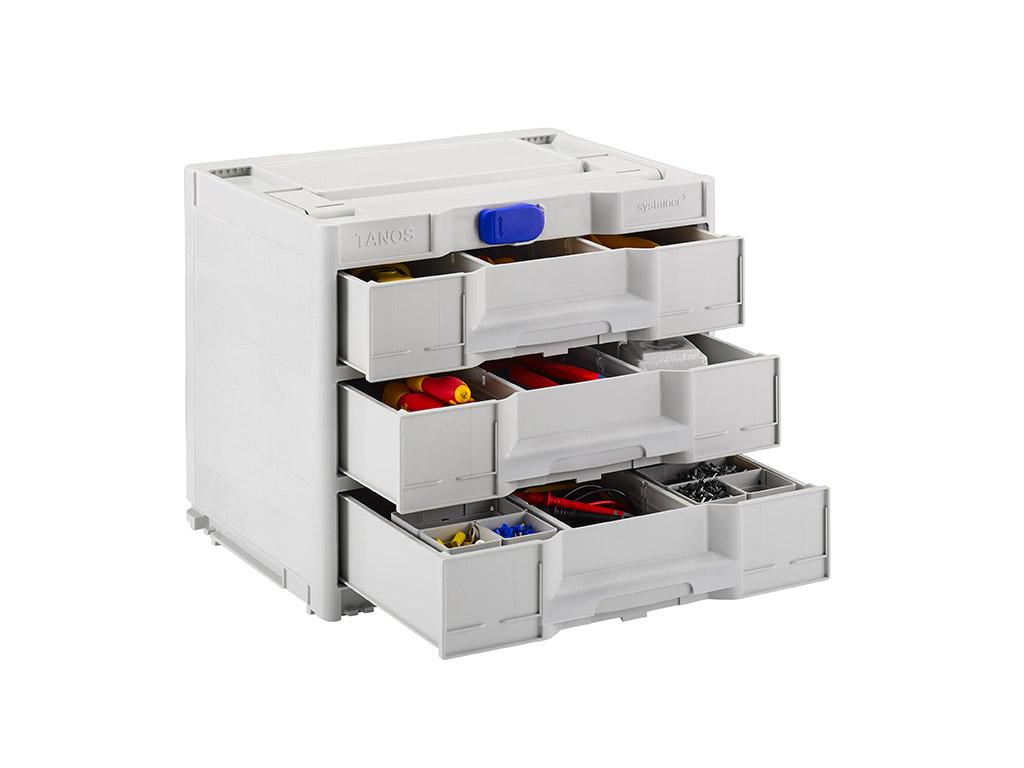

  • Maximum organisation from small parts to chargers. Choose between one small and one large drawer or three small drawers.

    Organized

    Maximum organisation from small parts to chargers. Choose between one small and one large drawer or three small drawers.

Systainer³ Sortainer Technical Data

Systainer³ Sortainer Dimensions



Systainer³ Sortainer / 2 M 337
Outside in mm
H* 330 x W 396 x D 296
Internal dimensions low drawer
H 66 x W 343 x D 271
Internal dimensions high drawer
H 158 x W 343 x D 261
Weight
5.18 kg
Carrying capacity
20 kg
Systainer³ Sortainer / 3 M 337
Outside in mm
H* 330 x W 396 x D 296
Internal drawer dimensions
H 66 x W 343 x D 271
Weight
6.22 kg
Carrying capacity
20 kg

* The outside dimensions are measured without feet: H + 7 mm



Systainer³ Sortainer Colors

  Standard colors Additional colors
Body
1)
3)		 Additional colors upon request
Lid handle
2)
3)
1)
4)
5)
6)
7)
8)
9)
10)
11)
12)
Catch
2)
3)
1)
4)
5)
6)
7)
8)
9)
10)
11)
12)

1) RAL 7035, light grey
2) HKS 43 K, signal blue
3) RAL 7016, anthracite

4) RAL 9004, black
5) RAL 1007, daffodil yellow
6) RAL 2011, deep orange

7) RAL 3002, carmine red
8) RAL 5015, sky blue
9) RAL 5003, sapphire blue

10) RAL 6001, emerald green
11) HKS 54K, signal green
12) RAL 9016, white
